Portable Chicken Coop / Tractor – Solar non-freezing chicken waterer – Best design yet

frozen water previewProviding unfrozen water in the winter can be a challenge and time consuming.  Since we pasture the chickens “tractor” style with the portable coop, power to heat the water is the issue.  I believe I’ve finally figured it out.

First year we started with multiple plastic waterers that we swapped out multiple times a day.  This works decently, but the water still freezes, it’s labor intensive, and someone needs to be around during the day to swap waterers.

The next year we steped it up by heating the waterers with a light bulb.  This worked pretty good, but required us to keep the coop within extension cord distance of an outlet and periodically water would freeze in the top  of the waterer.

I did not do a post on the tire waterer.  It was disappointing and it was easy to find info on it.  However, I still had the tire and pan laying around so I threw together a quick pic for reference.

Last year I built a tire waterer to try and keep the chicken water from freezing.   I put a board inside the tire on the bottom side, stuffed the inside of the tire with old tarps for insulation, and fitted a plastic pan in the tire.  My experience with that was poor and I do not recommend it.  The biggest issue was that the chickens would stand on the tire and mess in their water all day.  By the time I got home to change it, it was pretty bad.  It did help slow down the freezing process; however, being open air, it still allowed the water to eventually freeze solid, especially overnight.

I’ve been playing with an idea of an enclosed PVC and nipple system.  Basically building an insulated box and filling it with 3″ tubes of PVC, shown in the graphic.  There would be a cutout of  frame and insulation in one top corner to allow access to add water. One bottom corner would have a smaller PVC tube that protruded through the box with a water nipple on the end.  The front would be Twinwall Polycarbonate glazing to let the sun in and the inside would be painted black to absorb as much heat as possible.

It was getting cold this year and I needed to get a waterer made for the chickens so I decided to not build the PVC waterer for the following reason.  One,  my chickens are not trained to a nipple system yet.  I’m having trouble figuring out how to attach the PVC box to the ‘Pequod’ chicken coop, especially since it’s going to be heavy and need decent support.  The 3″ PVC fittings are expensive and I have concerns the metal part of the nipple would still freeze and cause issue.

I was basing the PVC system on principals I learned from this solar horse tank.   Then it hit me, how about trying to replicate the horse tank at a chicken waterer size!  Since the amount of water would be significantly less, I wouldn’t want to leave the top exposed, but chicken heads are small, so I took a gamble that they’d stick their heads through a hole instead.



My first thoughts were to use a bucket, but I didn’t like the clearances nor dealing with bending and attaching the polycarbonate glazing.  So I decided to use a tote, black obviously  so it will absorb the heat from the sun.

Using similar principals as the solar horse tank. I first put 2″ foam on the bottom to have an insulated base to sit the water on.   I measured from the top of the foam to the bottom of the lid and subtracted 2 inches for the foam that would be attached to the lid.  This gave me the height for the foam sides and Twinwall Polycarbonat glazing

Next I added the 2″ foam to the sides.  I looked at the shape of the tote and measured across the end where I could fit a straight piece of foam.  The bottom of the tote is narrower than the top, measured top and bottom and cut sloped pieces of foam.

I measured from the floor to top and between the insides of the sides to cut a rectangle out of the front of the tote for the window.  I cut a piece of polycarbonate glazing slightly larger, about 1/2 to 3/4 inch, than the hole on the sides and bottom so that the foam could help hold it in place.  I used duct to hold and seal the polycarbonate glazing in place; this also sealed the tubes.  I put the scrap piece of plastic from the side on the floor in front of the window to try and suck in more heat.

On the other side, I placed the water bowl in the tote and used the top of the bowl to mark the bottom of the drinking opening.  Using a hole saw, I cut two overlapping circles to make the oval shaped opening for the chickens to sick their head in to drink, cleaning up the oval edges with a utility knife.

I thought it would be better to use a thinner foam where the hens stick their heads in, so I cut a piece of 1/2 inch foam, from scrap I had, to cover this side, removing the same oval.  I used duct tape to hold the foam pieces together and seal the seams.  I also used several pieces of duct tape to secure the foam to the hole and prevent the chickens from rubbing the foam.

Next I cut the 2″ foam for the lid making it fit snug when placed in the tote, but not too snug as it’ll need to be opened and shut frequently.  With the foam in the tote and the lid on, I drilled 4 sets of 2 holes so I could use zip ties to secure the foam to the lid.   I also cut some small squares of plastic from something in the recycling to prevent the zip ties from digging into the foam and pulling through.

From the drinking hole, I wanted to minimize  the surface area of the incoming air over the bowl.  I used 2″ foam to make a bridge over the bowl, then added 1/2 foam on either side of the hole to create a smaller cavity where the outside air had direct contact with the water.

At this point I put the waterer into action; however, I forgot chicken peck.  I’m not sure why I thought they wouldn’t peck the foam bridge, but I did and they did, effectively destroying the bridge.

So… I redid the bridge.  I used corrugated plastic from an old ‘For Sale’ sign I had on all the pecking sides of the bridge and plenty of duct tape to hold it in place.  The 2″ foam was replace with 1/2″ foam over the bowl.  I didn’t account for needing to remove the bowl to clean it and the 2″ foam made it so I had to tip the bowl to get it out.  Now I don’t have to.

How well does it work?  Great.  Basically, overnight at 15-19 degrees Fahrenheit I had about 1/8 inch of ice frozen on the top of the bowl.  Down in the teens is a bit thicker.   In the morning if the bowl was full of water, pull the bowl out and bang it upside down on the ground to remove the ice.  If it’s half or less, then fill it with warm water from the tap and melt the ice that way.

During the day, in the teens and twenties the water stays unfrozen, especially if there is sun, but even on overcast days, there should be enough solar to keep it unfrozen.  Unfortunately, we only had a few days this winter where it stayed below freezing night and day for 2 or more days, so I cannot give accurate results for long cold spells; however, given what I’ve seen so far it should work great.  The heat from the warm water in the morning in conjunction with the passive solar heat should keep the water from refreezing during the day.

With all my scraps, this was a pretty cheap build and worth every penny.  $6 for the tote and $10 for the rubber bowl, and $20 for the polycarbonate glazing. (the link isn’t the one I purchased, but this is a similar 5 pack)   I had 2″  and 1/2″ foam left over from insulating the basement and other projects.

Back to main Portable Chicken Coop / Tractor page



-Jason

Brothers M. Mondays in May – Work days

Brothers M. Mondays in May is back – A new post each Monday in May 2019.

Taking care of the chickens can be fun and entertaining, but it’s still a lot of work.

The bulk of the work is in the daily feeding, watering, and moving of the chickens.  Multiple daily trips to the pasture are required to properly care for the birds.  We take pride in the care we give to raise quality chicken, even when it’s raining.

Besides the daily care, there are several other days that require extra amounts of labor.  Over 200 chickens are handled once when we receive them.  Handled two times when moving from the brooder to pasture and three times during processing. There are also maintenance days such as working on the chicken tractors and cleaning the brooders and equipment.









But, my favorite are the days we get the feed.  Helping the kids lug around 50lb bags of feed makes a person feel good.

Usually we load a lawn trailer to carry the bags down the hill.  This year we had mechanical issues half way through so Matthew got to strut his stuff by doubling up.





Brothers M. Mondays – Family

Brothers M. Mondays – A new post each Monday until the 2018 market season starts on 5/26.

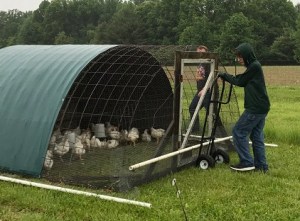

We are family.   Samantha fractured her ankle, but the chickens don’t care if you’re sick or hurt, they still need care multiple times a day.  So family kicks in.  Dad, Joseph and even a cousin or two have been helping Matthew while he’s the lone wolf.

Since Samantha couldn’t help, we put her to work taking some video.  And the youngest did her part by taking a few pictures and an unintentional  video of Sam and the boys with her new camera she got for her birthday.

Enjoy the video we’ve put together.



Dual-purpose Chickens – 8 – Winter Water

In fall of 2014 I decided I wanted to raise some dual-purpose chickens.  My focus is on a breed that lays good eggs which can be incubated to raise “panfry” broilers, pre-Cornish-Cross size meat birds.  So, how do I keep the water from freezing?

One of banes of winter is frozen livestock water.  In the past, we’ve use 3 plastic 1 gallon waterers and rotated them throughout the day, bringing the frozen  ones in to thaw.  This was not an optimal solution.



I did some searching and was intrigued by an idea of using a tire to accumulate solar heat, and straw and a board inside the tire as insulation.  However, that would not work around here once the temperatures dropped well below freezing.



The idea I settled on was to use a concrete block with a light bulb inside, especially since the coop was going to be close to a power source.  It was easy to make.  Just an extension cord, a plugin light receptacle, a cooking tin, and a concrete block.  Put the cord, receptacle , and light bulb together and slid them into the concrete block.

base    light

To keep the block sitting level, either chisel a grove in the concrete block or sit the block on two pieces of wood and run the cord in-between the two pieced of wood.

Grove

And cover with a tin pan, to keep moisture away from the light.  Although I have metal waterers, I’m using the plastic ones as I think they handle the water freezing better.

waterer

I’m using a 60W bulb an it has worked pretty good.   So far this year,  most days stayed above 20 degrees , but  a few days were close to zero.  These days produced some frozen “rings” higher up in the waterer;  however, the tray stayed unfrozen and the chickens had unfrozen water to drink.    One thing to watch out for is that when the water gets close to being out, the waterer is lighter and easy to knocked off.

-Jason
